Description

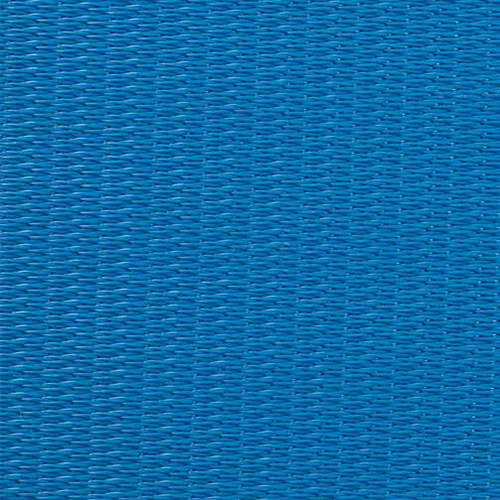

This polypropylene vacuum belt filter cloth offers excellent dimensional stability and a smooth, flat surface structure.
It is specially designed for phosphate and potash fertilizer filtration, ensuring stable filtration performance and high air permeability
in continuous vacuum belt filter applications.
Key Features
- Excellent dimensional stability
- Smooth and flat mesh surface
- High air permeability
- Durable structure with strong tensile strength
- Suitable for continuous vacuum belt filtration systems
Applications
- Phosphate fertilizer filtration
- Potash fertilizer filtration
- Chemical and desulfurization processes
Applicable Equipment
- Vacuum Belt Filter
- Horizontal Vacuum Belt Filter Systems
Technical Specifications
| Specification | Value |
|---|---|
| Material | Polypropylene (PP) |
| Weave Structure | 1/5 Twill |
| Yarn Diameter (mm) | 0.3 / 0.5 |
| Warp / Weft Density (/cm) | 45 / 12.5 |
| Air Permeability (200 Pa, L/m²·s) | 1100–1400 |
| Thickness (mm) | 1.15 |
| Weight (g/m²) | 860 |
| Tensile Strength – Warp (N/cm) | 1692 |
| Elongation at Break (%) | 22 |
Model: SD50506
